NFE-3L, Trep Spring Washer
NFE-3L, Trep Spring Washer, TREP 3L Spring washers for high bolt property classes ≥ 8.8, M4-M20 available in stock from China Lock Washer Manufacturer
 |
 |
NFE-3L, Trep Spring Washer , Trep Washer, Trep Disc Washer
Made of Spring steel, surface treatment by Zinc plated or Dacromet;
Size: M4-M20

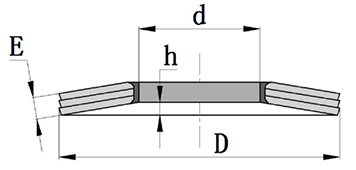

| M | D [mm] |
d [mm] |
e [mm] |
h [mm] |
| M4 | 10 | 4.50 | 1.50 | 0.50 |
| M5 | 12 | 5.50 | 2.40 | 0.30 |
| M6 | 14 | 6.50 | 2.40 | 0.60 |
| M8 | 18 | 8.50 | 3.60 | 0.56 |
| M10 | 22 | 10.5 | 4.50 | 0.60 |
| M12 | 27 | 12.5 | 5.40 | 0.80 |
| M14 | 30 | 15 | 6 | 1.05 |
| M16 | 33 | 17 | 6.60 | 1.25 |
| M18 | 36 | 19 | 7.50 | 1.09 |
| M20 | 40 | 21 | 9 | 1.15 |
