DIN94/ISO1234 Split Pins
Split Pins, also known as Cotter Pins, as per DIN 94 / ISO 1234 standard, made of steel , Zinc plated, D1.2mm – 10.0mm from China Split Pins Manufacturer.
Split Pins / Cotter Pins DIN 94 / ISO1234 standard ,UNI 1336
Size: D1.2mm – D10.00mm
 |
 |

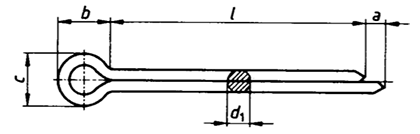

DIN 94/ISO 1234 Split Pins / Cotter Pins specification:
| D | d1 max. | d1 min. | c max. | c min. | a max. | b |
|---|---|---|---|---|---|---|
| 1.2 | 1.0 | 0.9 | 2.0 | 1.7 | 2.5 | 3.0 |
| 1.6 | 1.4 | 1.3 | 2.8 | 2.4 | 2.5 | 3.2 |
| 2.0 | 1.8 | 1.7 | 3.6 | 3.2 | 2.5 | 4.0 |
| 2.5 | 2.3 | 2.1 | 4.6 | 4.0 | 2.5 | 5.0 |
| 3.2 | 2.9 | 2.7 | 5.8 | 5.1 | 3.2 | 6.4 |
| 4.0 | 3.7 | 3.5 | 7.4 | 6.5 | 4.0 | 8.0 |
| 5.0 | 4.6 | 4.4 | 9.2 | 8.0 | 4.0 | 10.0 |
| 6.3 | 5.9 | 5.7 | 11.8 | 10.3 | 4.0 | 12.6 |
| 8.0 | 7.5 | 7.3 | 15 | 13.1 | 4.0 | 16.0 |
| 10 | 9.5 | 9.3 | 19 | 16.6 | 6.3 | 20.0 |
| 13 | 12.4 | 12.1 | 24.8 | 21.7 | 6.3 | 26.0 |
